# Aruba

## Prepare certificates

To establish a valid RadSec connection, your Access Points must trust the **RADIUS Server Certificate** and your RADIUS server must trust your **RadSec Client Certificate**. To achieve this,

1. Download the root certificate of the CA that has issued your active **RADIUS Server Certificate** as described [here](https://docs.radiusaas.com/admin-portal/settings/settings-server#download).
2. Create a **RadSec Client Certificate** for your WAPs (centrally managed via Aruba Central). If you are using **SCEPman Certificate Master**, the process is described [here](https://docs.scepman.com/certificate-deployment/certificate-master/client-certificate-pkcs-12).

{% hint style="warning" %}
Ensure to monitor the expiry of your **RadSec Client Certificate** and renew it in due time to prevent service interruptions.
{% endhint %}

3. Add the root certificate of the CA that has issued the **RadSec Client Certificate** to your RADIUS instance as described [here](https://docs.radiusaas.com/admin-portal/settings/trusted-roots#add) and select **RadSec** under **Use for**.\
   In case the **RadSec Client Certificate** has been issued by SCEPman and you already trust the SCEPman Root CA for client authentication, simply edit the trusted SCEPman Root CA certificate and select **Both** under **Use for**.

## Aruba Central configuration

{% hint style="info" %}
Below settings are the necessary settings to establish a functional RadSec connection with our service. Configure any other settings at your discretion.
{% endhint %}

For general information on how to import certificates to your Aruba platform, please refer to their documentation:

{% embed url="<https://www.arubanetworks.com/techdocs/ArubaOS_85_Web_Help/Content/arubaos-solutions/manage-utilities/impo-cert.htm>" %}

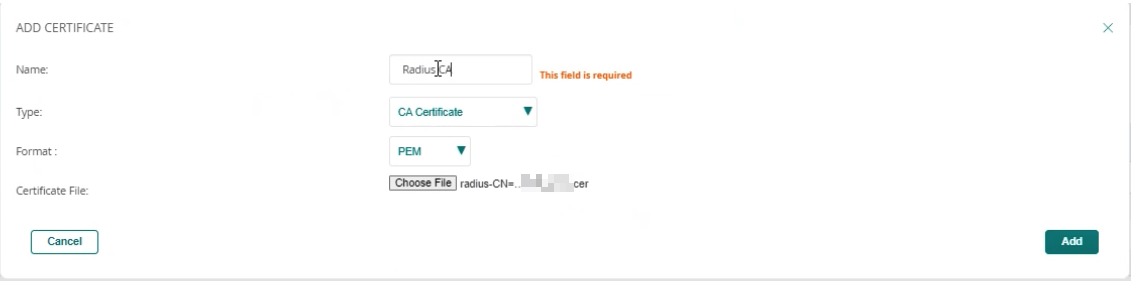

1. Import the root certificate of the CA that has issued your **RADIUS Server Certificate** with the type **CA certificate**.

   <figure><img src="https://content.gitbook.com/content/SWU1DQ4UGkqER7uGNUOm/blobs/7oZFIYHe5SPBELNr16Ai/image.png" alt=""><figcaption></figcaption></figure>

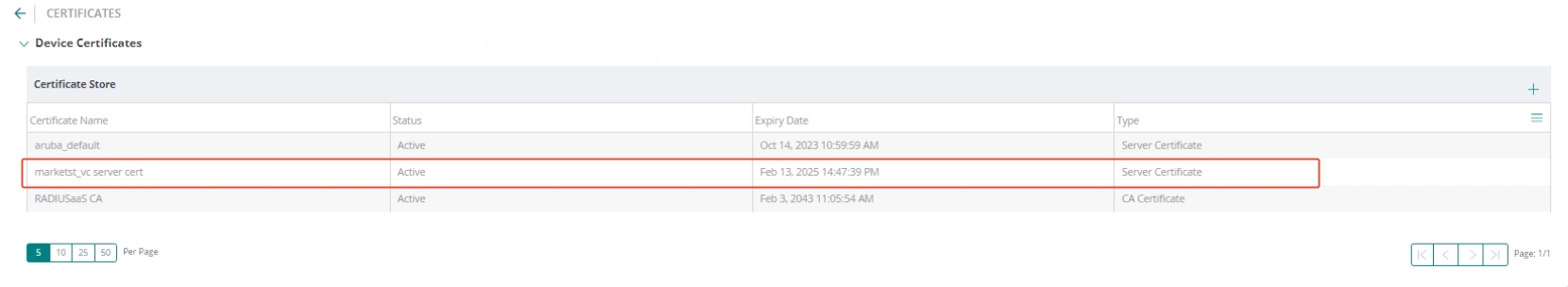

2. Import the **RadSec Client Certificate** (created in step 2 under [Prepare Certificates](#prepare-certificates)) with the type **Server certificate**.

   <figure><img src="https://content.gitbook.com/content/SWU1DQ4UGkqER7uGNUOm/blobs/l56DkhLOdLZNmaArbvoZ/image.png" alt=""><figcaption></figcaption></figure>

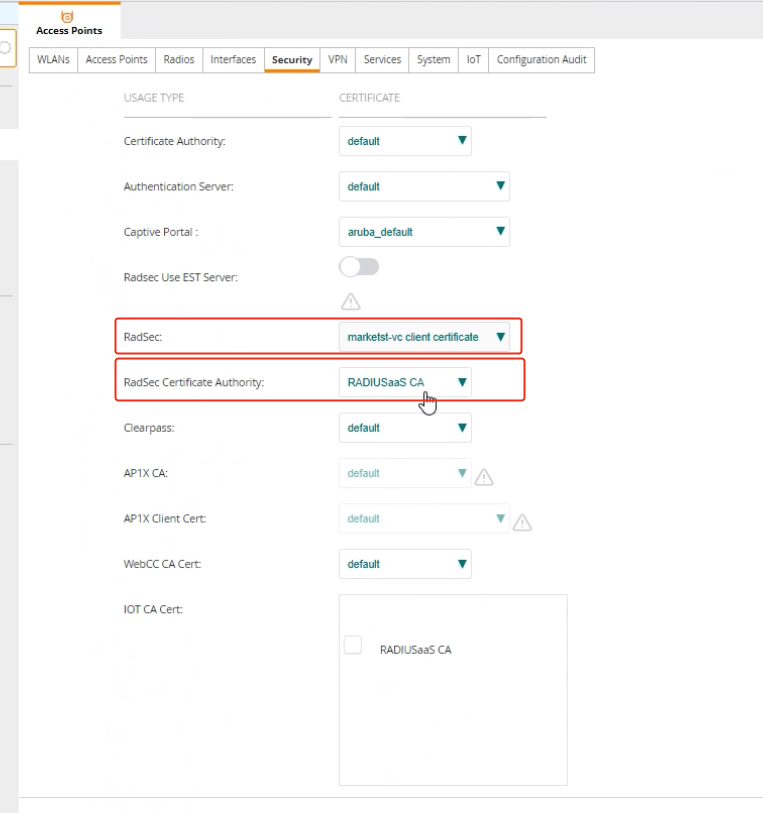

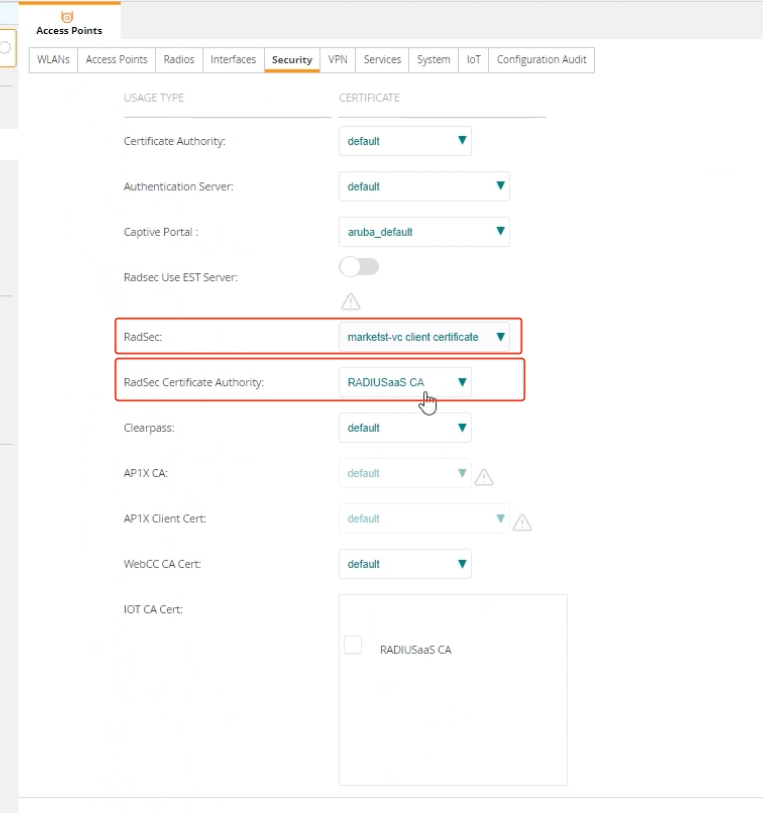

3. Under **Access Points >** **Security** select the imported **RadSec Client Certificate** for **RadSec** and the RADIUS root CA certificate for **RadSec Certificate Authority**.

   <figure><img src="https://content.gitbook.com/content/SWU1DQ4UGkqER7uGNUOm/blobs/pusmqfe8cbf9K5VIUGXL/image.png" alt=""><figcaption></figcaption></figure>

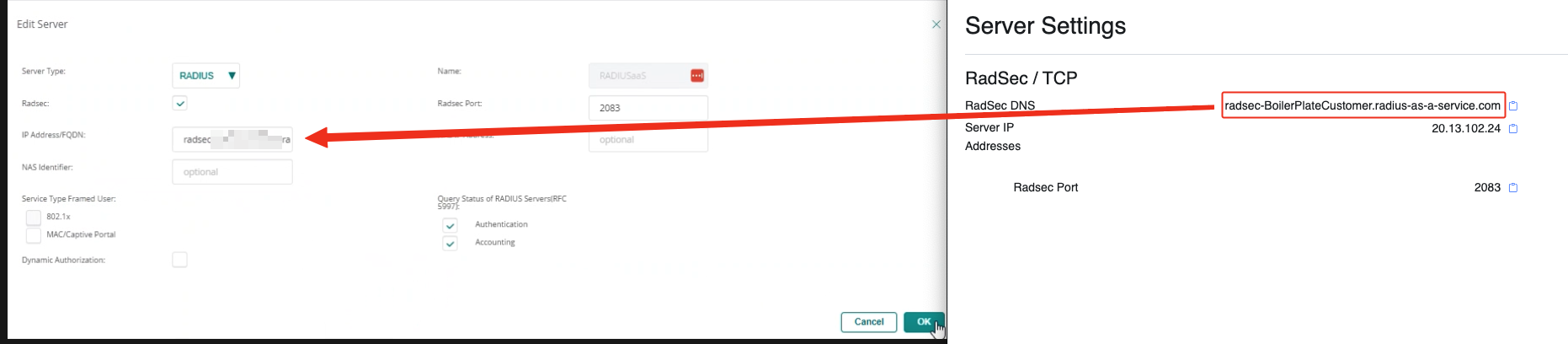

4. For the RADIUS server configuration, enable **RadSec** and choose either the IP address or the DNS name of your [RadSec service endpoint](https://docs.radiusaas.com/admin-portal/settings/settings-server#properties).

   <figure><img src="https://content.gitbook.com/content/SWU1DQ4UGkqER7uGNUOm/blobs/W246ZOMEYDAIP4sIVQkw/image.png" alt=""><figcaption></figcaption></figure>
