WiFi Profile

We strongly recommend to not use any spaces or special characters in your SSID.

To configure a WiFi profile in Google Workspaces for your Chromebooks, please follow these instructions:

In your Google Admin console (at admin.google.com) > Go to Menu > Devices > Network > Create a Wi-Fi network.
In the Platform access section, check the box for Enabled for Chromebooks (by device).
In the Details section, set the following:

Details	Value
Name	Your WiFi name (we recommend to match it with the SSID).
SSID	Your SSID.
Automatically connect	Enable the checkbox.
Security Type	WPA/WPA2/WPA3 Enterprise (802.1X)
Extensible Authentication Protocol	EAP-TLS
Maximum TLS Version	1.2
Username	Anonymous
Server Certificate Authority	Reference the certificate profile containing your RADIUS server certificate root CA.

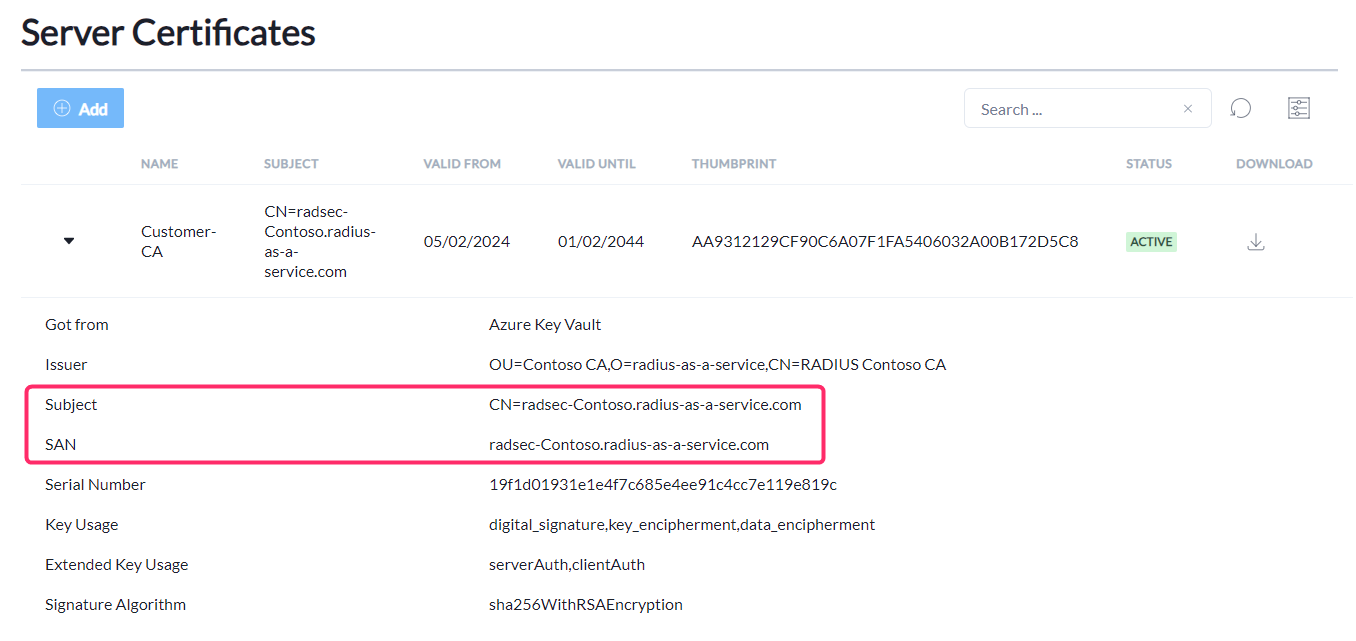

Server Certificate Domain Suffix Match	Add the Subject Alternative Name (SAN) and Common Name (CN) of your active RADIUS Server Certificate. These properties can be found by expanding the active server certificate and copying the relevant values. See screenshot below.
SCEP profile	Reference your SCEP certificate profile.

Details

Value

Name

Your WiFi name (we recommend to match it with the SSID).

SSID

Your SSID.

Automatically connect

Enable the checkbox.

Security Type

WPA/WPA2/WPA3 Enterprise (802.1X)

Extensible Authentication Protocol

EAP-TLS

Maximum TLS Version

1.2

Username

Anonymous

Server Certificate Authority

Reference the certificate profile containing your RADIUS server certificate root CA.

Server Certificate Domain Suffix Match

Add the

Subject Alternative Name (SAN)
and Common Name (CN)

of your active RADIUS Server Certificate. These properties can be found by expanding the active server certificate and copying the relevant values. See screenshot below.

SCEP profile

Reference your SCEP certificate profile.

Click Save.
